Portable Board Edgers

Add to Cart

Options

$17,612.00

Info

Info

MPN:
Cooks Board Edger

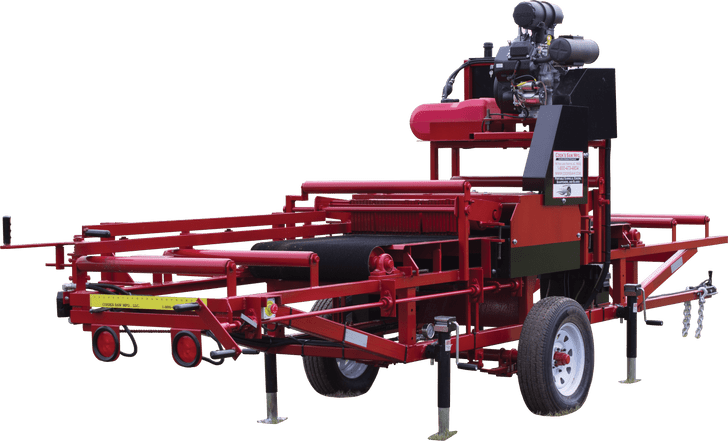

Description

Need to trim rough cut lumber? We have the thing for you! Edging boards with a board edger is a highly efficient way to solve your problem. Adding an edger to your operation adds efficiency and production because edgers increase the board ft. yield to increase your profits.

By edging on a Board Edger instead of your sawmill you will increase production by a minimum of 35%.  The AC36 Sawmill and AE Board Edger are a perfect match as the sawmill is made to drag boards directly back to a gravity roller and the edger can be placed in line to that roller for a quick transition into edging.
If you are serious about making money with your sawmill then it only makes good business sense to have an edger.

Features:

  • Top Mount engine design for easy engine access
  • Metal Roller board hold down feed system - applies even hold down pressure across the entire board width; superior to tires
  • Top mount board roller quick return system
  • Pressure compensated flow control system - allows control of feed speed from 0 to 100 feet per minute
  • 34-1/2" Wide Board Width
  • 2"-21" Edge Cut Width
  • Carbide tipped Dual Split Strobe Saws with 3/16" blade thickness
  • Dual board edger guides - makes edging a snap with no guess work
  • Board anti-kickback fingers
  • Hydraulic Speed Control - fully hydraulic system allows control of feed speed from 0 to 100 feet per minute (no hydrostat)
  • 2-ply rufftop Infeed/Outfeed belting - provides long life and gentle to the lumber
  • Two Infeed and two outfeed rollers for easy board guiding
  • Heavy wall tubing main frame for solid, long lasting service
  • Electric, Gas, or Diesel power options
  • Process 10,000+ board feet per day - based on an 8hr. work day with 12" material x 10ft-12ft. in length
  • 12" Dual Strobe Saws - cut cants up to 3" tall (comes on certain models only)
  • 14" Dual Strobe Saws - cut cants up to 4" tall (comes on certain models only)

Models:

AE-2P

  • Standard Features
  • 25hp EFI Kohler Gas Engine
  • Trailer Package
  • Dual 12" Strobe Saws
  • $17,612.00



AE-4P

  • Standard Features
  • 38hp EFI Kohler Gas Engine
  • Trailer Package
  • Dual 14" Split Strobe Saws
  • $18,520.00



AE-354P

  • Standard Features
  • 35hp Yanmar Diesel Engine
  • Trailer Package
  • Dual 14" Split Strobe Saws
  • $27,920.00



AE-2E

  • Standard Features
  • 15hp 3 Phase or 10hp Single Phase Electric
  • Stationary Frame with Legs
  • Dual 12" Split Strobe Saws
  • $14,992.00



AE-4E

  • Standard Features
  • 20hp 3 Phase Electric
  • Stationary Frame with Legs
  • Dual 14" Split Strobe Saws
  • $15,932.00

Options:

  • Stationary Laser - $1,295.00 (Electric models only)
  • Moveable Laser - $1,695.00 (Electric models only)
  • Both Lasers - $2,795.00 Save $200 (Electric models only)
  • 3rd Strobe Saw (stationary saw) - $595.00

Call or email for your FREE demo DVD 1-800-473-4804 or order online.
